RAM Mount Universal Drill-Down Horizontal Laptop Mount

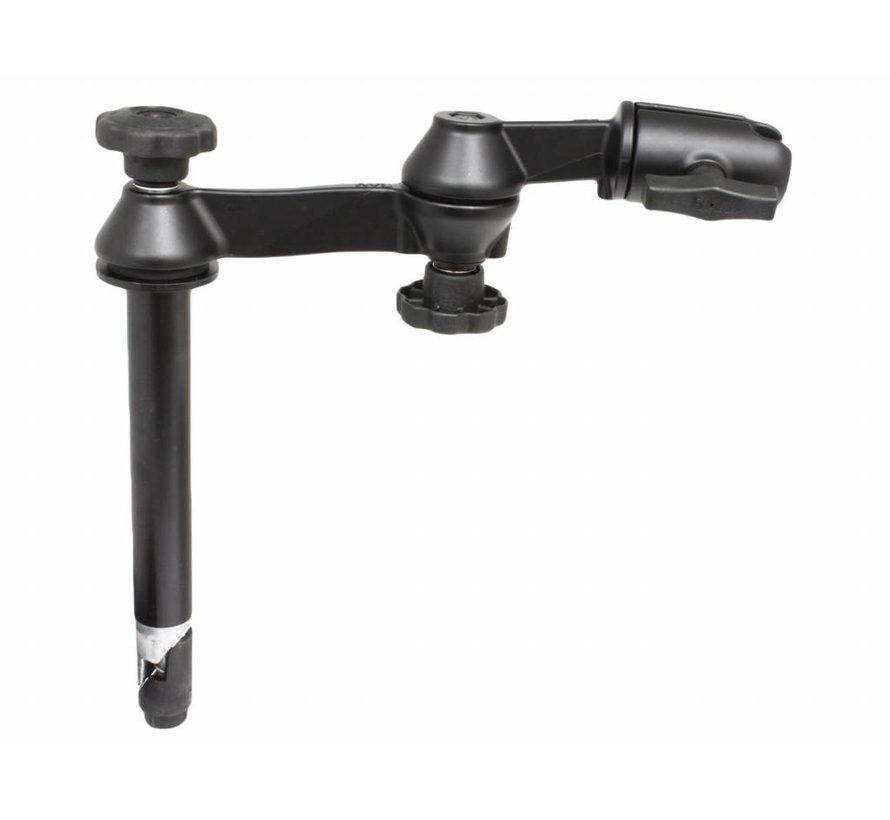

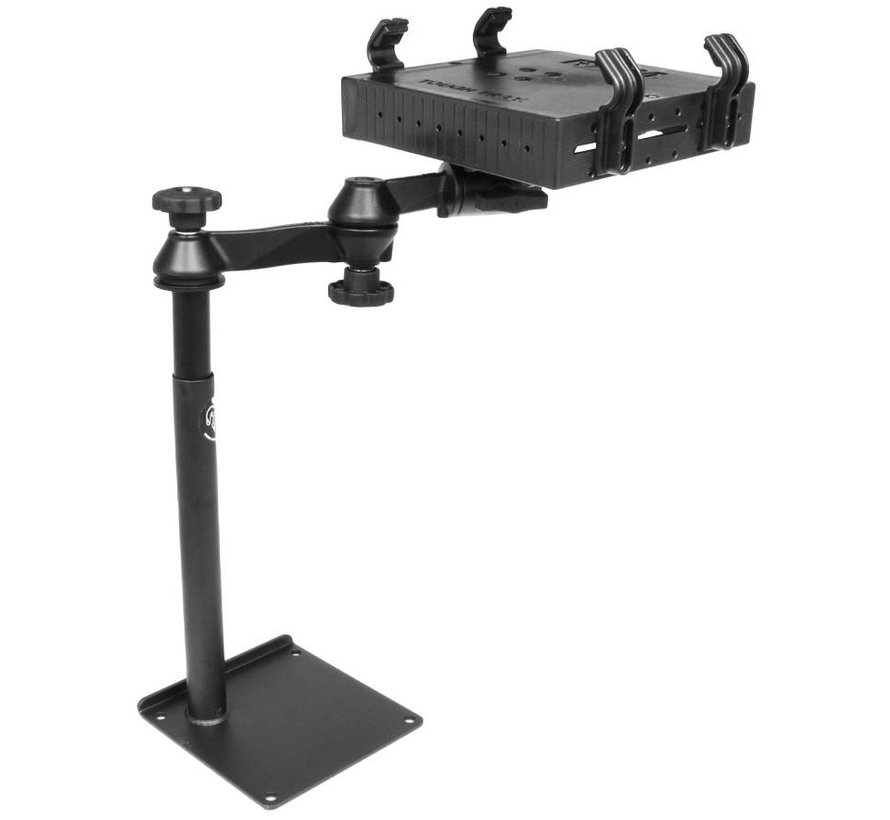

This universal drill type Laptop Stand System installs quickly and easily into most vehicles by using self tapping screws, or by drilling and then bolting down the mount base to the vehicle*. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops. The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray.
Compatible Vehicles:
Universal for All Vehicles
Placement
Flat surface/floor
Drilling Required
Yes
Seat Configuration
Bucket/Bench
Construction/Finish
Steel/Black Powdercoat
Dimensions
A = 8", B = 8", C = 14.125"
SPECIFICATIONS
Pole or Pedestal
Included
Weight
4.6 lbs.
Optie: RAM Tough-Tray Laptops RAM-234-3
Laptoptray met gebogen klemmen
Side Clamp Arm Height: 0.5" (min) to 1.75" (max)
Optie: RAM Tough-Tray Laptops RAM-234-3FL
Laptoptray met rechte klemmen. De klep van de laptop kan zo ook gesloten worden.

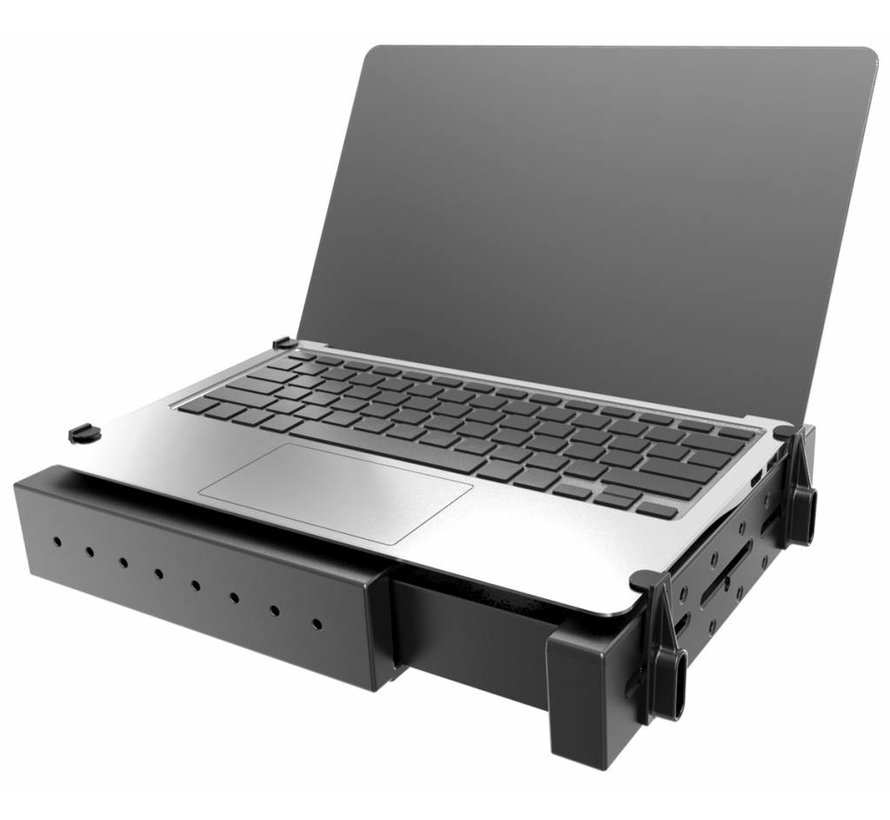

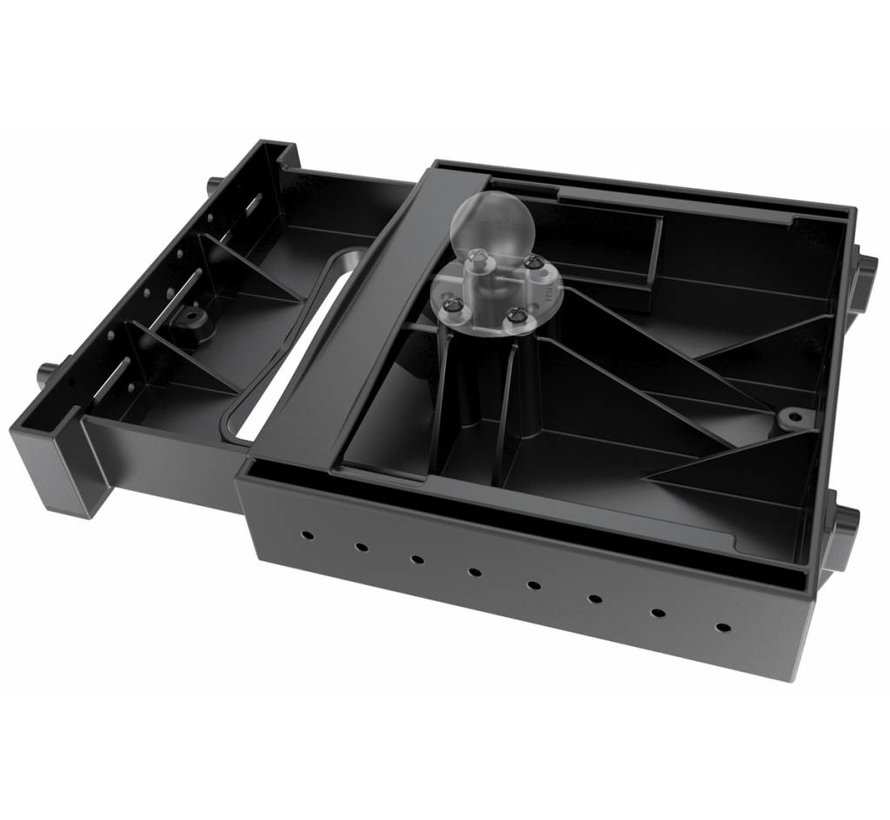

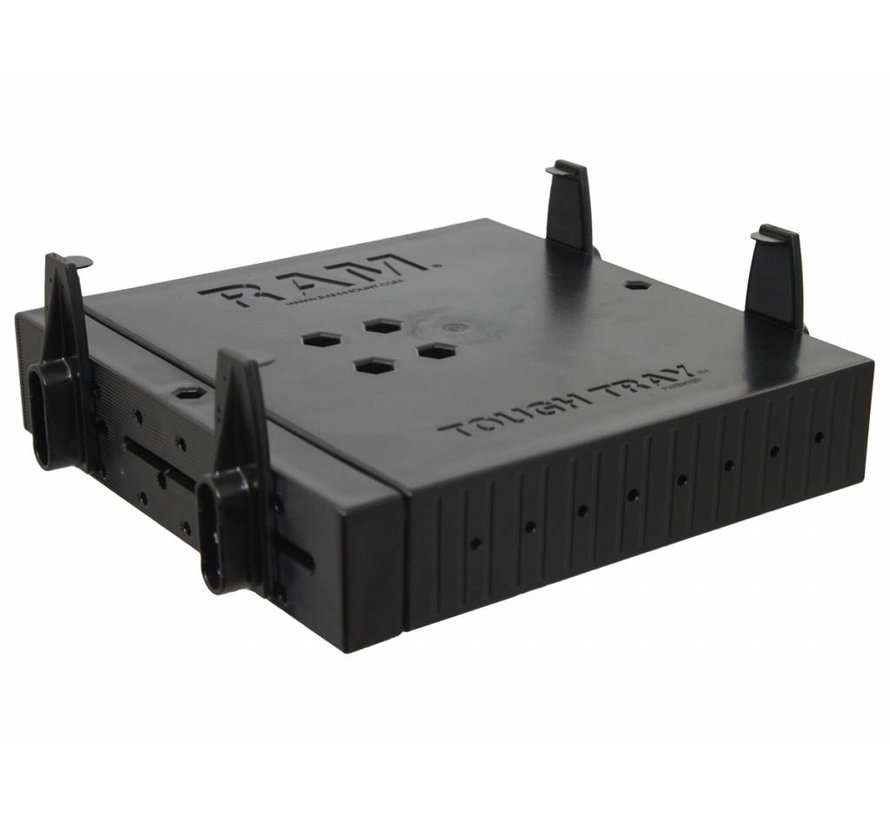

The RAM Tough-Tray™ is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four FLAT (4) side clamping arm; they allowing for your laptop to close completely while in the tray.. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.
Tough-Tray™ Dimensions:
Tray Depth: 10.0"
Tray Thickness: 2.125"
Tray Width (Expansion): 10" to 16" laptops
Side Clamp Arm Height: 0.5" (min) to 1.75" (max)
Kan naar wens ook iPad of tablethouder op gemonteerd worden dankzij de RAM-C-kogel.
