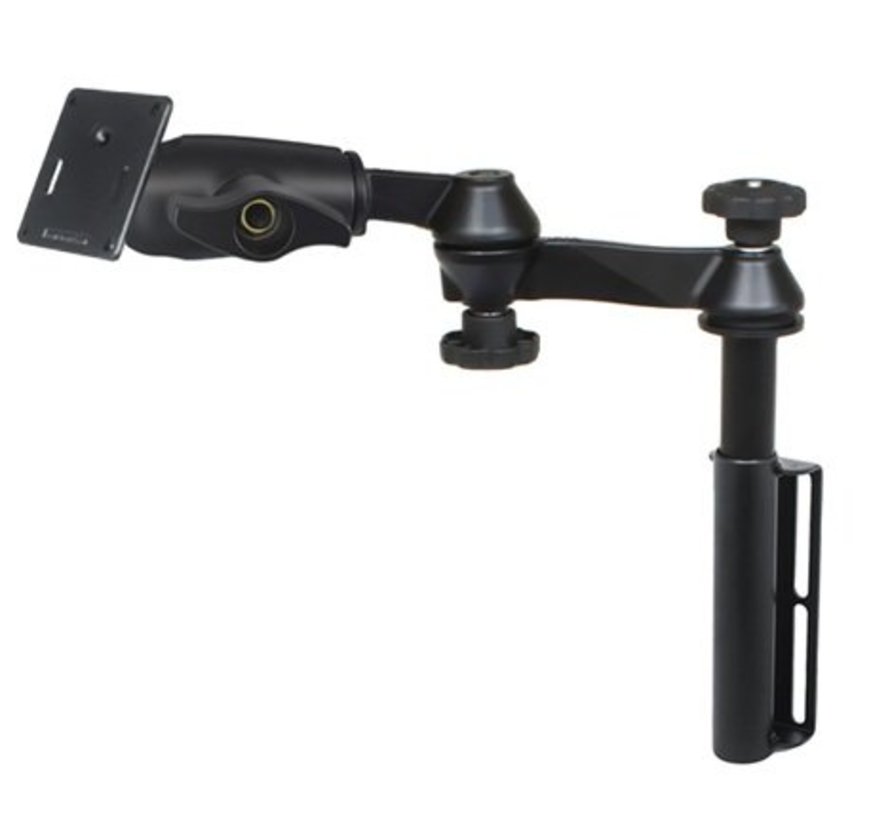

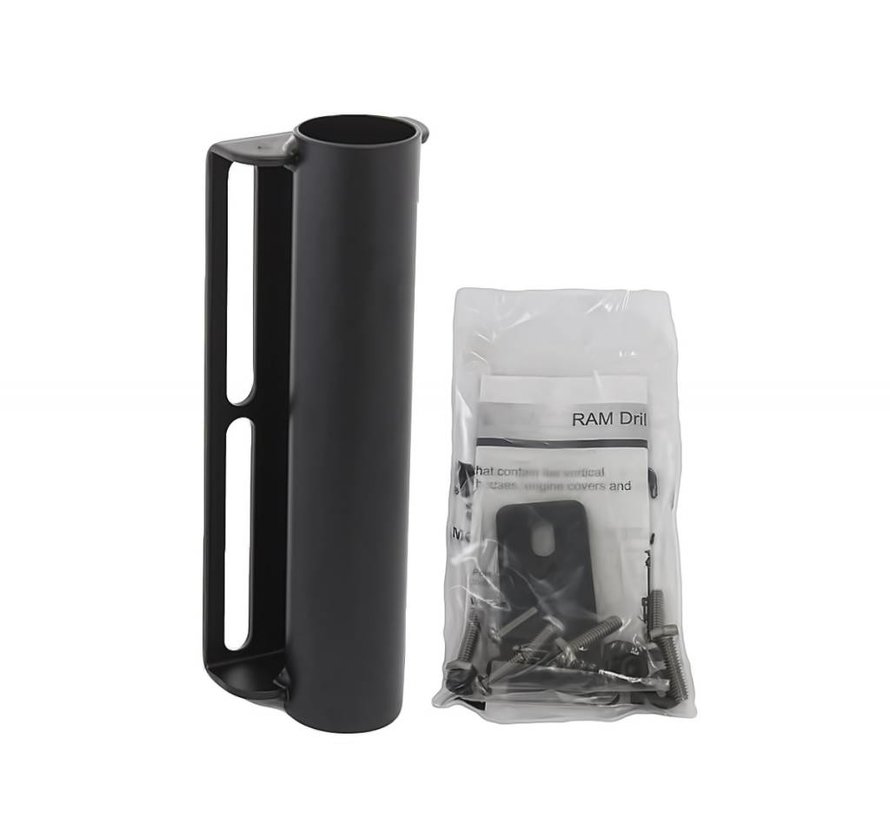

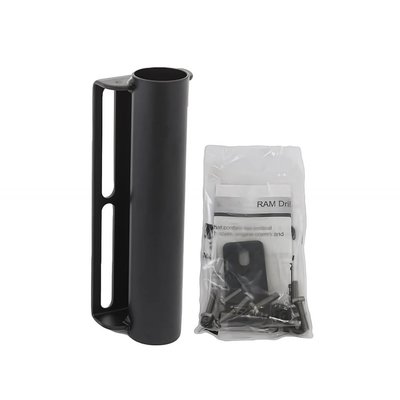

RAM Mount Drill Laptop Base RAM-VB-181
Base voor montage van RAM statieven en swingarms.
Compatible Vehicles:Universal, all vehicles that contain flat vertical surfaces including dog houses, engine covers and RAM console boxes.
PLACEMENT OF MOUNT:
Passenger side, front, where seat rail frame attaches to floor board.
DRILLING REQUIREMENTS:
Yes
Dimensions:
A = 3" (7.6 cm), B = 7.5" (19.1 cm), C = 2.029" (5.2 cm), Base Hole Centers = 3.34" (8.5 cm)
Back Plate Dimensions:
A = 3.25" (8.3 cm), B = 1.5" (3.8 cm), Back Plate Hole Centers = 2" (5.1 cm)
Height Adjustability:
Height can be adjusted from 7.75” (19.7 cm) to 12.7.5” (32 cm), depending on the upper tube size.
