RAM Mount 10"Tablet set3 stang montage RAM-B-149Z-TAB-LGU
Flexibele stangbevestiging en 10 inch tablet RAM-HOL-TAB-LGU houder voor fiets, rolstoel, golfcart. Ook geschikt voor hoofdsteunmontage in de auto!
Complete set voor bevestiging van tablets aan (stuur)stang. Toepassingen op fiets, hometrainer, rolstoel, motor of b.v. golfcart. Dankzij het kogelsysteem is de instelling zeer flexibel en snel instelbaar. De rubberen kogels zorgen daarnaast voor demping van trillingen.

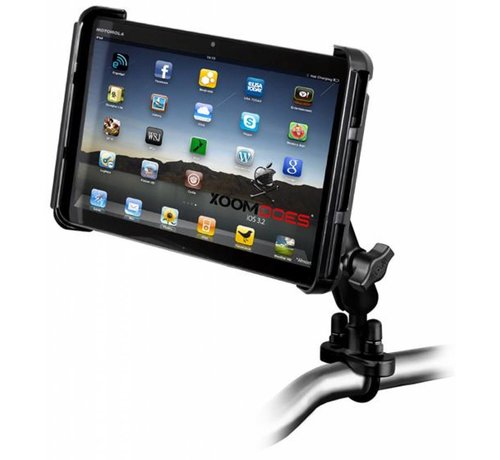

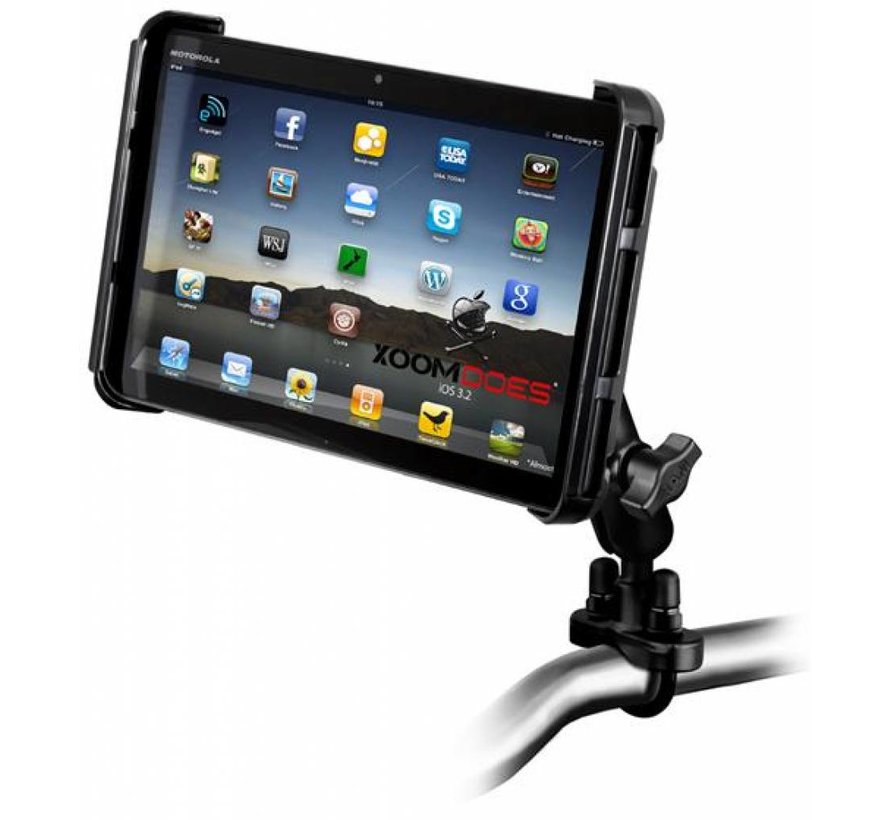

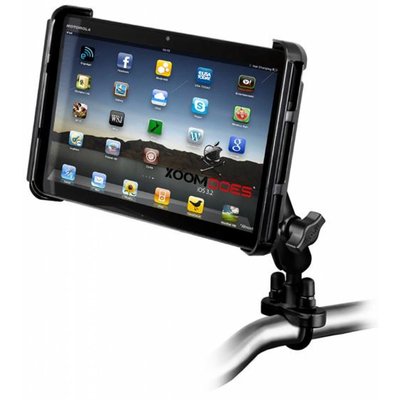

The RAM-B-149Z-TABGLU consists of a stainless steel u-bolt base, double socket arm and non-locking cradle for 10 inch tablets. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the tablet rail mount to your optimum viewing position.
Deze set bestaat uit:
1. Ram houder voor stuurstang montage
RAM-B-231ZU: RAM-B-231ZU: Stalen zwarte U-beugel met rubberen B-kogel. voor stuurstangen tussen 1.3 en 3.2 cm diameter incl. rubberen beschermdopjes voor schroefdraad uiteinden en kunststof stangbeschermer.
RAM-B-201U: Aluminium Double socket arm voor B-kogel. Maximaal flexibel en snel instelbaar. Gepoedercoat aluminium

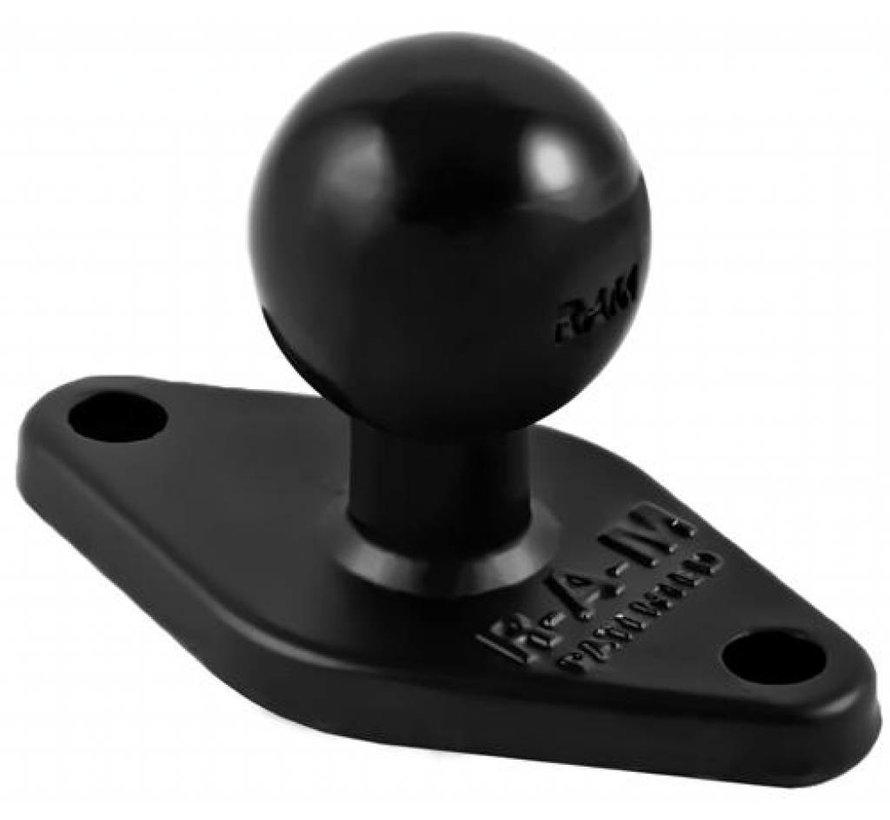

RAM-B-202U: B-kogel voor montage aan tablethouder

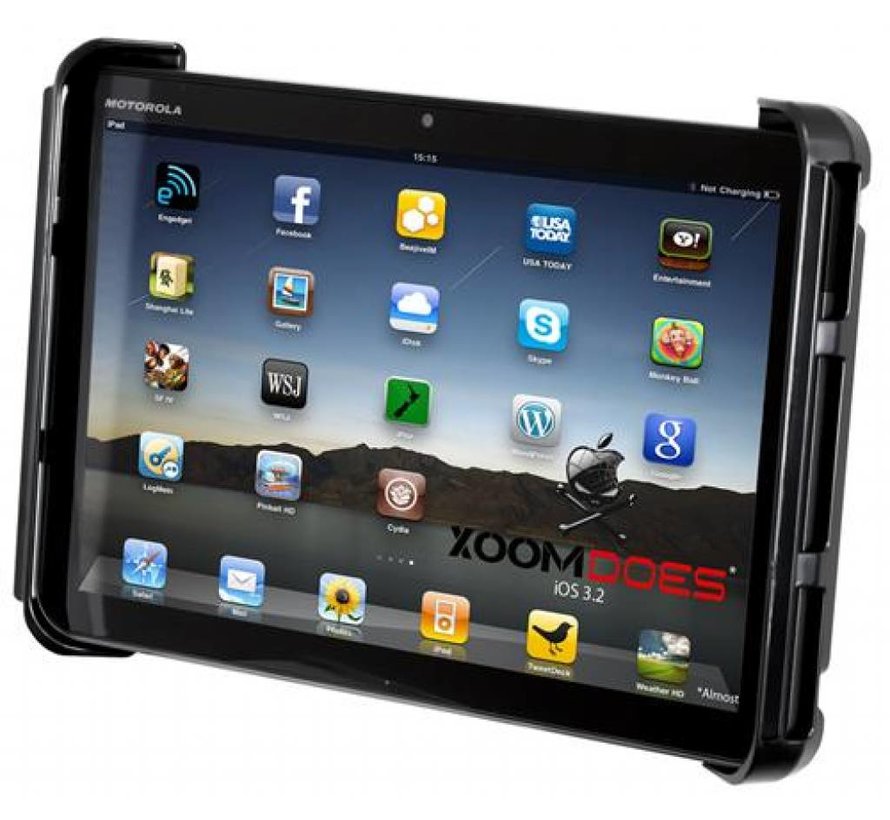

2. Ram Holder for 10 inch tablets RAM-HOL-TAB-GLU
Get the most out of your tablet with the RAM Tab-Tite™ universal clamping cradle. With 2 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the holder to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your mobile device.
Compatible Devices:
10" Tablets with LifeProof nüüd cases
10" Tablets with Lifedge cases
10" Tablets with Heavy duty cases (Griffin, Otterbox, Gumdrop etc)
Included With Purchase:

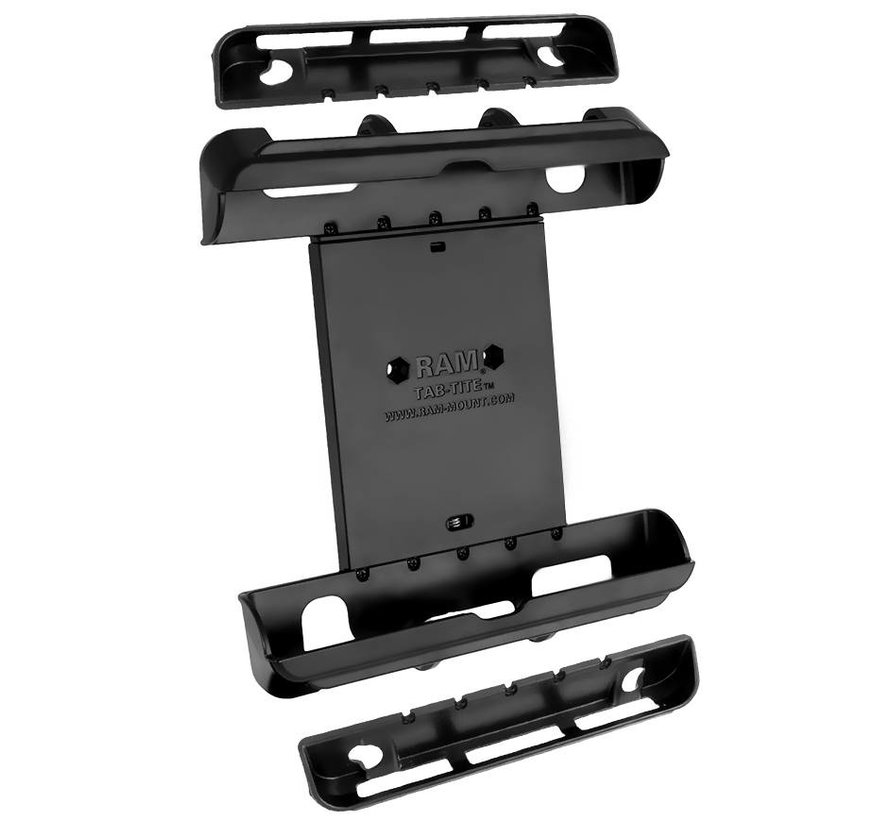

(1) Spring loaded back plate
(2) Support cups for thin tablets
(2) Support cups for wide tablets
Mounting hardware
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet with a case/sleeve/skin when determining the overall size.
Er zitten 2 verschillende houders (cradle) bij om de Tab-Tide geschikt te maken voor meerdere maten tablets.
Check vooral de maten van uw tablet met de onderstaande specificaties (gemeten in portrait stand).
Cradle 1 Dimensions:
Hoogte: 21,6 cm minimum tot 27,3 cm maximum
Breedte: Maximum tot 19,7 cm
Dikte hoeken: Maximum tot 1,4 cm
Cradle 2 Dimensions (extra dikke cases):
Hoogte: 22,2 cm minimum tot 27,3 cm maximum
Breedte: Maximum tot 21,0 cm
Dikte hoeken: Maximum tot 2,8 cm
Features:
1. Support cups contain open slots to accommodate for tablets of various sizes

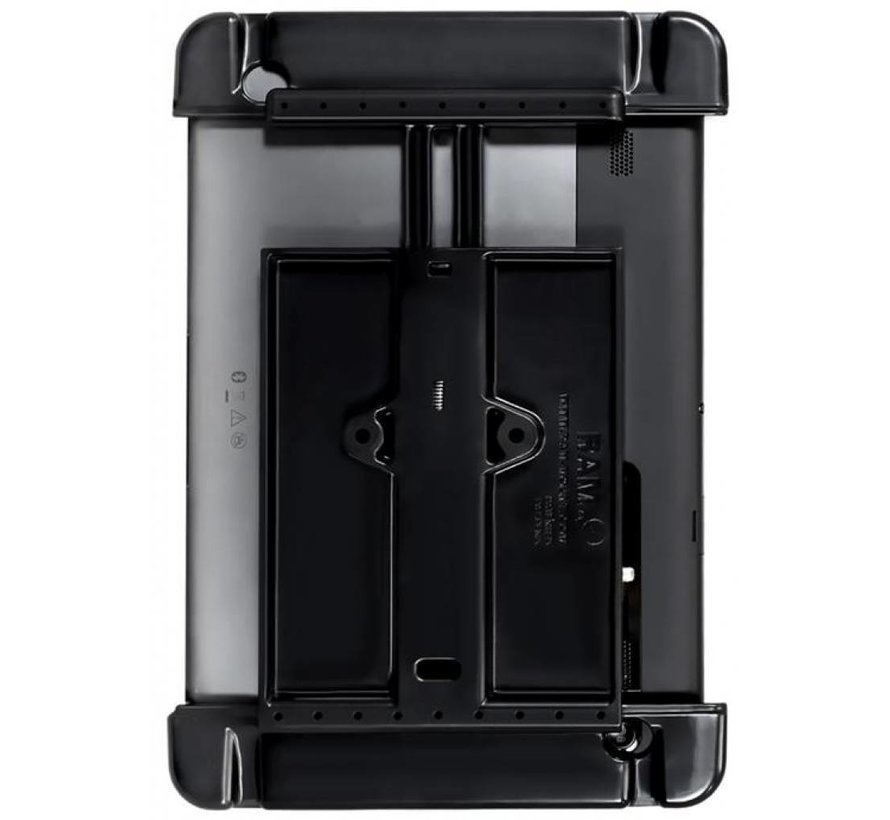

2. Back plate can support various size support cups
3. Spring loaded tension provides secure support for your tablet
4. Spring loaded cradle allows for quick release of your tablet
5. Full access to all ports
Material:
High Strength Composite
