RAM Mount No-Drill™ Laptop Base Ford Connect 2014 RAM-VB-188
Base voor montage van RAM statieven en swingarms.
Compatible Vehicles:
Dodge Journey (2011-2013)
Ford C-Max (2014)
Ford Escape (2013-2014)
Ford Focus (2011-2014)
Ford Transit Connect (2014)
Jeep Compass (2013-2014)
Jeep Patriot (2013-2014)
This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough Tray™ is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
Placement of Mount:
Passenger side, front, where seat rail frame attaches to floor board
Drilling Requirements:
No - attaches to seat studs
Seat Configuration:
Bucket
Material:
High Strength Composite and Powder Coated Steel

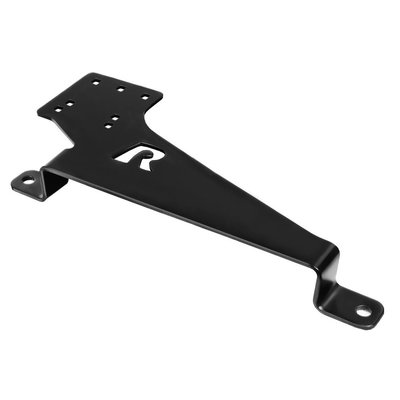

Dimensions (zie foto)
A = 15.5", B = 7", C = 1.95", Hole Center = 13.56"
Features:
Quick installation with no drilling needed. Rock solid construction with a lifetime warranty.
