RAM Mount Horizontal Single Swing Arm Mount RAM-109HU

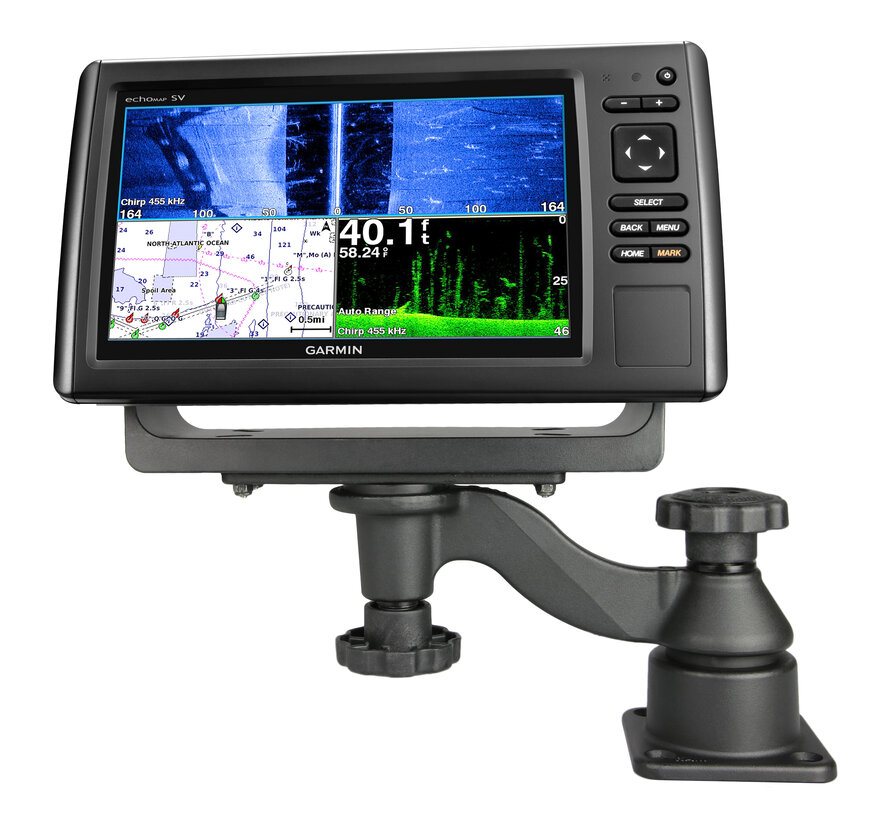

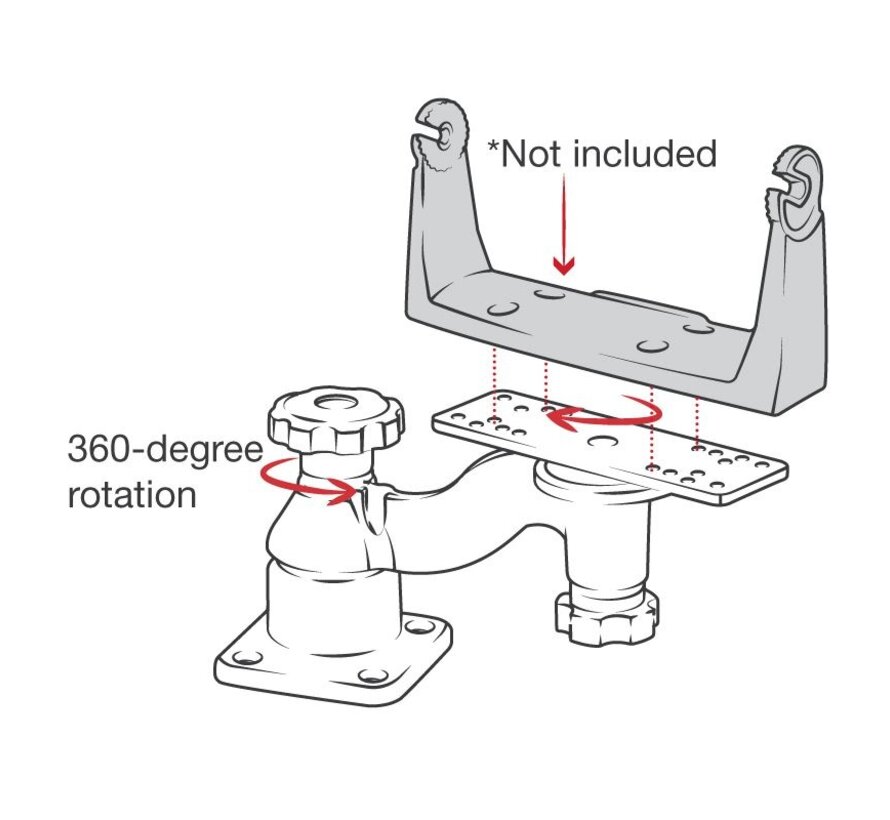

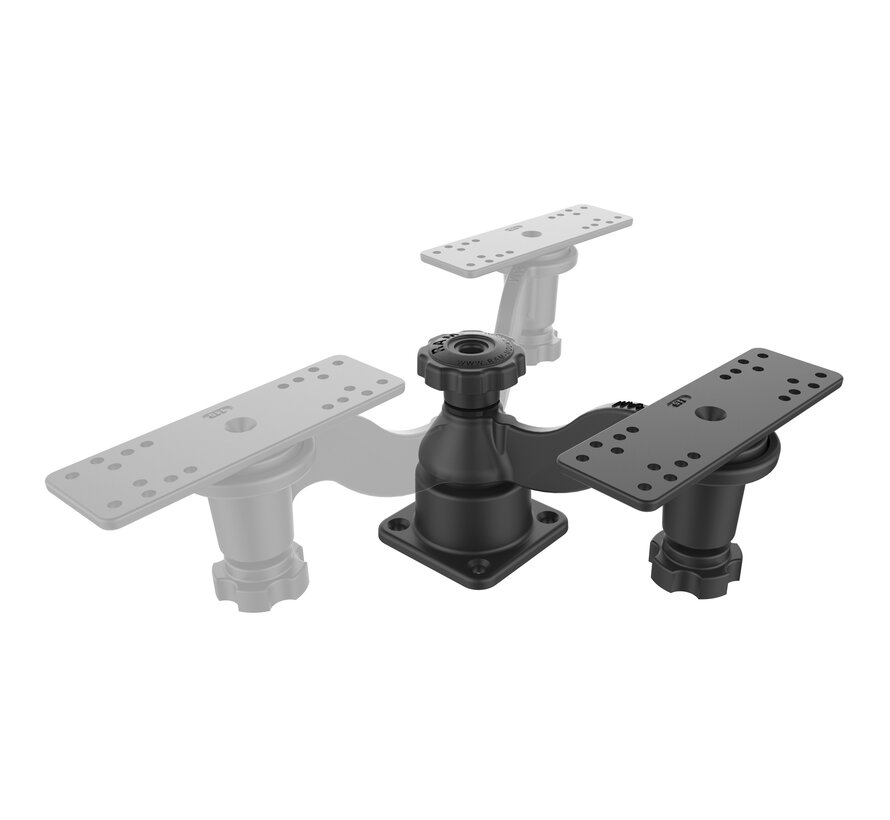

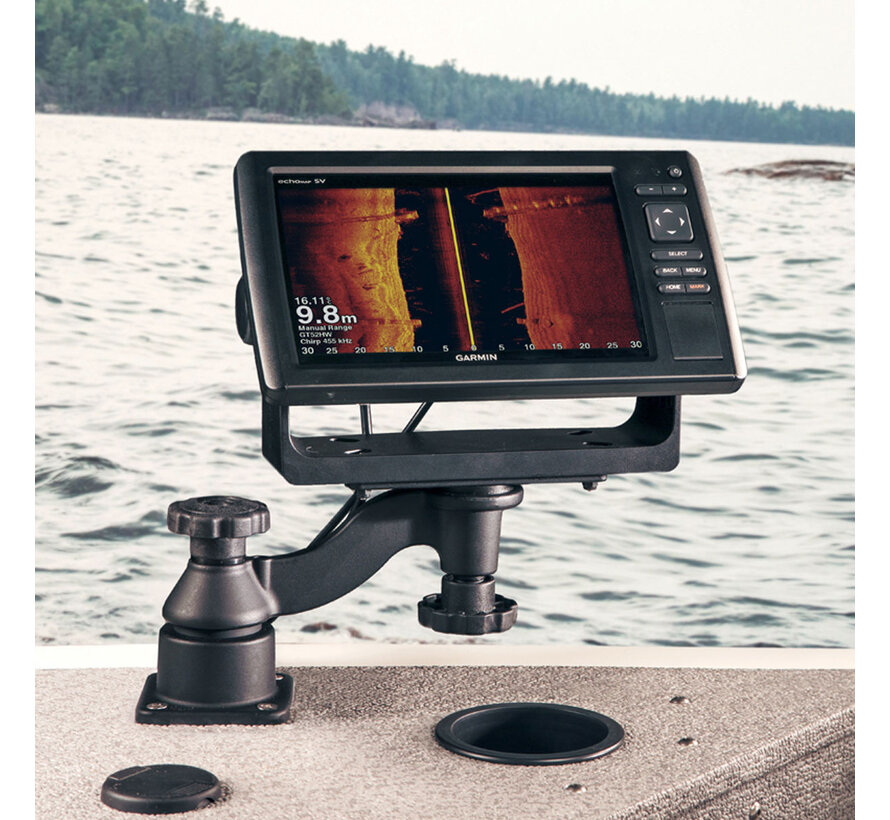

The RAM single swing arm mount consists of a 6" long BENT swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.
Dimensions:
A. Center of knob to center of ball socket: 6" (15,2 cm)
B. Overall length of swing arm assembly: 10.75" (27,3 cm)
C. Overall height: 5.6" (14,2 cm)
D. Height from base to top of knob: 4.91" (12,5 cm)
Material:
Powder Coated Marine Grade Aluminum
Mount Components included
BASE: RAM-111BTU
ARM: RAM-109-1APU
BASE: RAM-109H-B
Montageplaat inclusief
The RAM-111BT universal base has a short post connected at right angles to a flat 6.25 x 2 inch rectangular base. The base has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. The small post on the base is designed to connect to the RAM-109 series arms. Included on the end of the post is a tightening knob for use when installed on the compatible RAM-109 series arm.
Compatible Makes & Models
GARMIN FISHFINDER 320C
GARMIN GPSMAP 180
GARMIN GPSMAP 182
GARMIN GPSMAP 182C
GARMIN GPSMAP 185 SOUNDER
GARMIN GPSMAP 188 SOUNDER
GARMIN GPSMAP 188C SOUNDER
GARMIN GPSMAP 192C
GARMIN GPSMAP 198C SOUNDER
Compatible Makes & Models
GARMIN GPSMAP 2106
GARMIN GPSMAP 2206
GARMIN GPSMAP 230
GARMIN GPSMAP 232
GARMIN GPSMAP 235 SOUNDER
GARMIN GPSMAP 238 SOUNDER
GARMIN GPSMAP 3005C
GARMIN GPSMAP 3006C
GARMIN GPSMAP 3205
Compatible Makes & Models
GARMIN GPSMAP 3206
LOWRANCE LCX-104C
LOWRANCE LCX-110C
LOWRANCE LCX-17M
LOWRANCE LCX-19C
LOWRANCE LCX-20C
LOWRANCE LCX-25C
LOWRANCE LCX-26C HD
LOWRANCE LMS-332C
C
HUMMINBIRD 947C 3D COMBO
HUMMINBIRD 931C
HUMMINBIRD 937C COMBO
HUMMINBIRD 981C SI
HUMMINBIRD 987C SI COMBO
HUMMINBIRD MATRIX 97
The RAM-111BT universal base has a short post connected at right angles to a flat 6.25 x 2 inch rectangular base. The base has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. The small post on the base is designed to connect to the RAM-109 series arms. Included on the end of the post is a tightening knob for use when installed on the compatible RAM-109 series arm.
Compatible Makes & Models
GARMIN FISHFINDER 320C
GARMIN GPSMAP 180
GARMIN GPSMAP 182
GARMIN GPSMAP 182C
GARMIN GPSMAP 185 SOUNDER
GARMIN GPSMAP 188 SOUNDER
GARMIN GPSMAP 188C SOUNDER
GARMIN GPSMAP 192C
GARMIN GPSMAP 198C SOUNDER
Compatible Makes & Models
GARMIN GPSMAP 2106
GARMIN GPSMAP 2206
GARMIN GPSMAP 230
GARMIN GPSMAP 232
GARMIN GPSMAP 235 SOUNDER
GARMIN GPSMAP 238 SOUNDER
GARMIN GPSMAP 3005C
GARMIN GPSMAP 3006C
GARMIN GPSMAP 3205
Compatible Makes & Models
GARMIN GPSMAP 3206
LOWRANCE LCX-104C
LOWRANCE LCX-110C
LOWRANCE LCX-17M
LOWRANCE LCX-19C
LOWRANCE LCX-20C
LOWRANCE LCX-25C
LOWRANCE LCX-26C HD
LOWRANCE LMS-332C
C
HUMMINBIRD 947C 3D COMBO
HUMMINBIRD 931C
HUMMINBIRD 937C COMBO
HUMMINBIRD 981C SI
HUMMINBIRD 987C SI COMBO
HUMMINBIRD MATRIX 97
