RAM Mount C-Kogel stangklem RAM-108BU
C-Kogel voor dikke stangen en buizen. Stalen spanband en rubberen bescherming strip. Geschikt voor zwaardere houders zoals netbooks, laptops en monitoren te monteren.

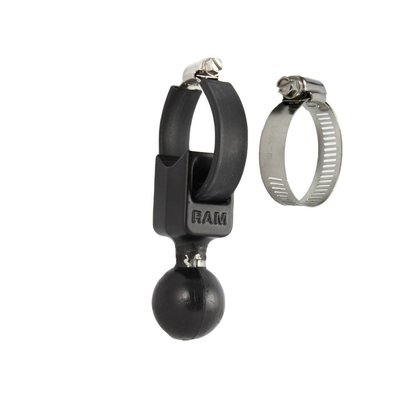

The RAM-108BU consists of a 1.5" diameter rubber ball connected at a right angle to a v-shaped base. The RAM-108BU accommodates rails from 0.5" to a maximum of 2" in diameter. To mount the RAM-108BU base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail.
hardware included
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
clamp range
1" - 2.1" diameter
ball size
C Size (1.5")
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1.5" Rubber Ball Size
