RAM Mount Ball & Mounting Hardware for the Raymarine® Dragonfly™

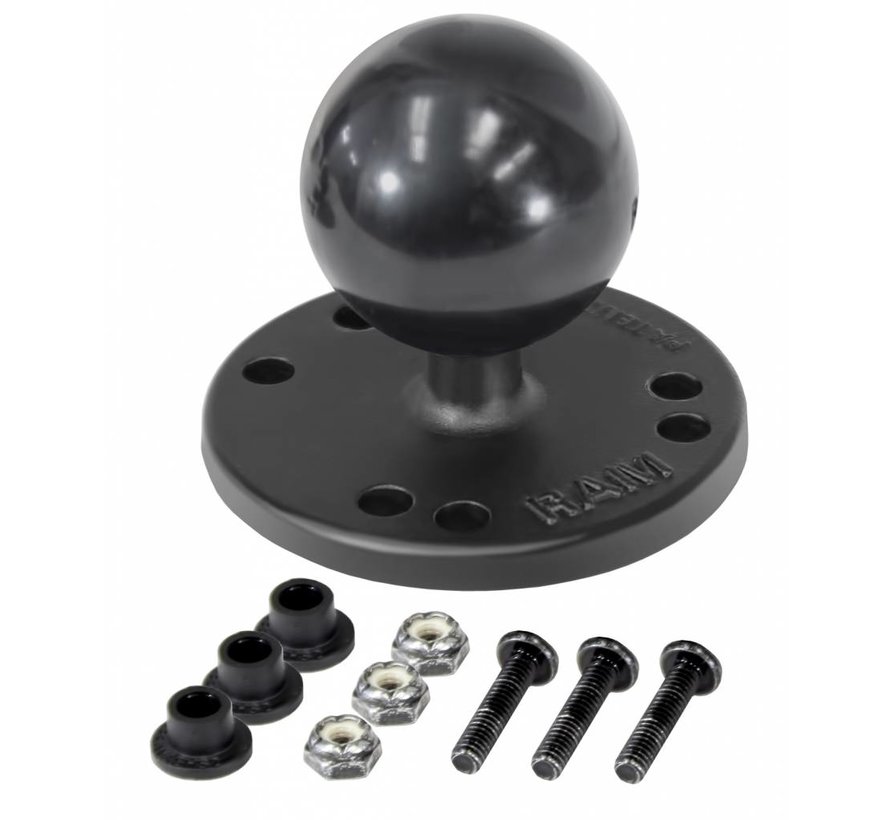

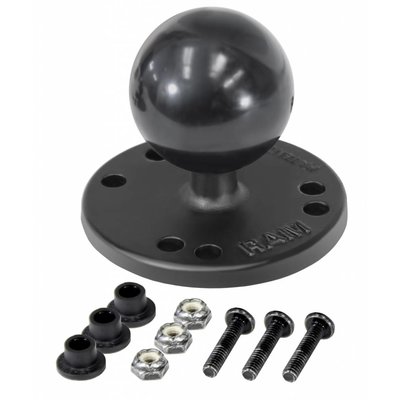

The RAM-202U-RYM1 consists of a 1.5" diameter rubber ball connected to a flat 2.5" diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-202U-RYM1 to the bottom of all Raymarine® Dragonfly™ Sonar/GPS devices.
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1.5" Rubber Ball Size
Note:
The "U" in the part number reflects product packaged in poly bag.
Compatible Arms/Mounts:
The RAM-202U-RYM1 is not a complete mounting solution. A double socket arm, that accepts 1.5" ball bases, is required to attach to the RAM-202U-RYM1.
